CONN RCPT FMALE 22P SOLDER CUP | JAE Electronics

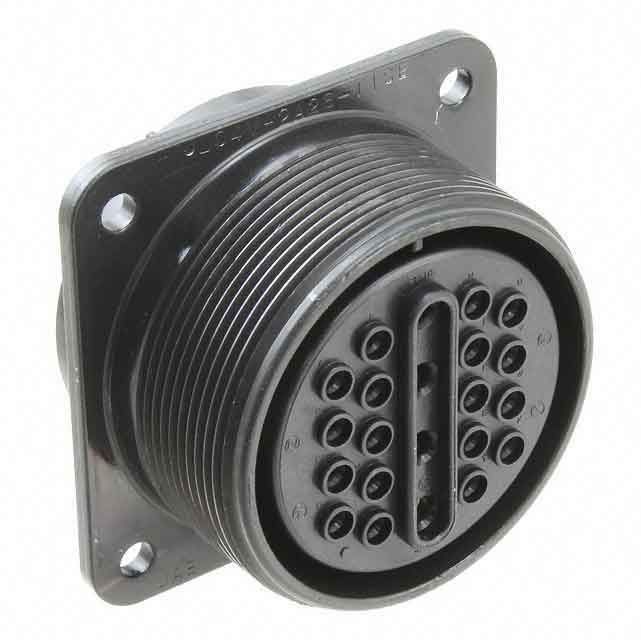

22 (21 + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup
Images may differ
Unit Price ($ / pc.)
26.304445 $
*
Available: 246 pcs.
Next delivery: 4116 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 15 Weeks **
Quantity
Price per unit*
100 pcs.
24.989223 $
500 pcs.
23.674001 $
1000 pcs.
22.358778 $
3000 pcs.
21.043556 $
10000 pcs.
19.728334 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The JL04V-2A28-11SE-R is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by JAE Electronics made. The JL04V-2A28-11SE-R is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | JAE Electronics |
| Series | JL04V |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 22 (21 + PE) |
| Shell Size - Insert | 28-11 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Zinc |
| Contact Finish - Mating | Silver |
| Color | Black |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Features | Ground |
| Shielding | - |
| Current Rating (Amps) | 13A, 23A |
| Voltage Rating | 100VAC, 250VAC |
| Cable Opening | - |
| Operating Temperature | -55°C ~ 125°C |
| Backshell Material, Plating | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - |
| Insert Material | Silicon Rubber |
| Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
| Base Product Number | JL04V-2A |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
