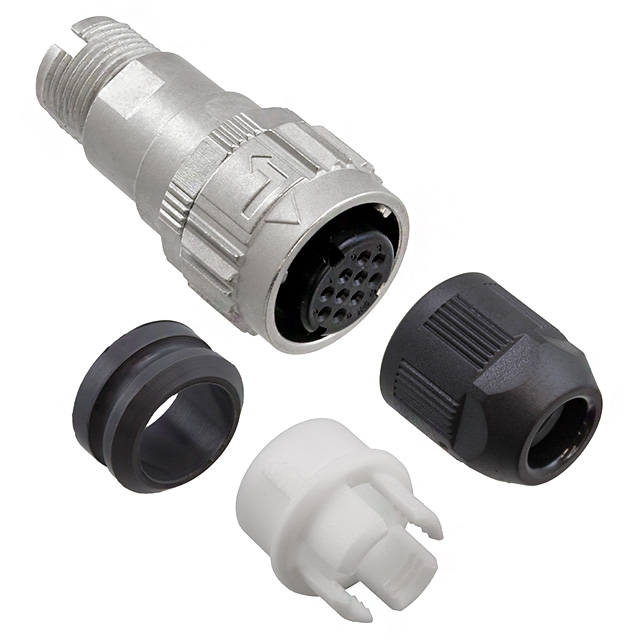

CONN PLUG FMALE 10P SOLDER CUP | Hirose Electric Co Ltd
10 Position Circular Connector Plug, Female Sockets Solder Cup
Images may differ
Unit Price ($ / pc.)
$
*
Available: 544 pcs.
Next delivery: 10374 pcs.
Available in 4 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The HR08D-12WPB-10S is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by Hirose Electric Co Ltd made. The HR08D-12WPB-10S is using SPQ 20 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Hirose Electric Co Ltd |
| Series | HR08D |
| Package | Bulk |
| Product Status | Obsolete |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 10 |
| Shell Size - Insert | 12 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Twist |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 3A |
| Voltage Rating | 200VAC, 250VDC |
| Cable Opening | 0.256" ~ 0.287" (6.50mm ~ 7.30mm) |
| Operating Temperature | -20°C ~ 85°C |
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 8.00μin (0.203μm) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Applications | Industrial |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 20 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
