CONN MALE INSERT 12P SOLDER CUP | HARTING

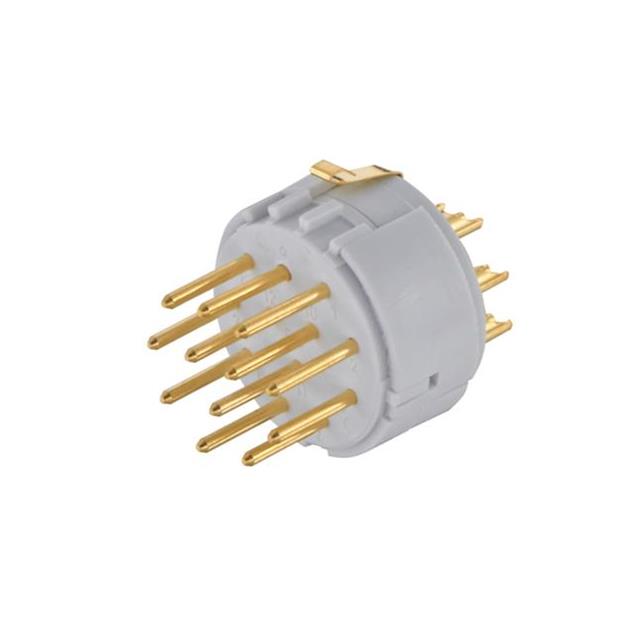

12 (11 + PE) Position Circular Connector Insert, Male Pins Solder Cup
Images may differ
Unit Price ($ / pc.)
9.5998 $
*
Available: 853 pcs.
Next delivery: 16863 pcs.
Available in 8 Weeks
Manufacturer Leadtime: 8 Weeks **
Quantity
Price per unit*
100 pcs.
9.11981 $
500 pcs.
8.63982 $
1000 pcs.
8.15983 $
3000 pcs.
7.67984 $
10000 pcs.
7.19985 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 9151122622 is a common industry Circular Connector Assemblies housed in a RoHS compliant Standar package by HARTING made. The 9151122622 is using SPQ 5 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | HARTING |
| Series | Han M23 |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Insert, Male Pins |
| Number of Positions | 12 (11 + PE) |
| Shell Size - Insert | M23-12 |
| Shell Size, MIL | - |
| Mounting Type | - |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | - |
| Orientation | - |
| Primary Material | - |
| Shell Material | - |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Features | Insert Only, Requires Shell |
| Shielding | Unshielded |
| Current Rating (Amps) | 8A |
| Voltage Rating | 200V |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 125°C |
| Backshell Material, Plating | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - |
| Insert Material | Polyamide (PA), Nylon |
| Applications | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
