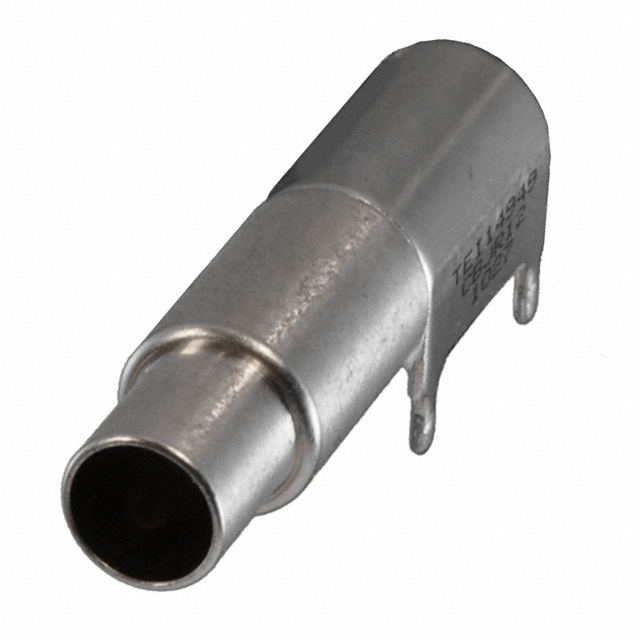

CONN MINI WECO JACK RA 75OHM PCB | Cinch Connectivity Solutions Trompeter
WECo, Mini, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) 75 Ohms Through Hole, Right Angle Solder
Images may differ
Unit Price ($ / pc.)
$
*
Available: 324 pcs.
Next delivery: 5754 pcs.
Available in 2 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The CBJR12 is a common industry Coaxial Connector (RF) Assemblies housed in a RoHS compliant Standar package by Cinch Connectivity Solutions Trompeter made. The CBJR12 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Cinch Connectivity Solutions Trompeter |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Connector Style | WECo, Mini, Twinaxial/Triaxial |
| Connector Type | Jack, Female Socket (Concentric) |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Cable Group | - |
| Fastening Type | Push-Pull |
| Frequency - Max | 1 GHz |
| Number of Ports | 1 |
| Features | - |
| Housing Color | Silver |
| Ingress Protection | - |
| Center Contact Material | - |
| Includes | - |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Dielectric Material | - |
| Operating Temperature | -65°C ~ 165°C |
| Voltage Rating | 250 V |
| Mating Cycles | - |
| Insertion Loss | - |
| Base Product Number | CBJR |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
