CONN SMB JACK R/A 50OHM SOLDER | Amphenol RF

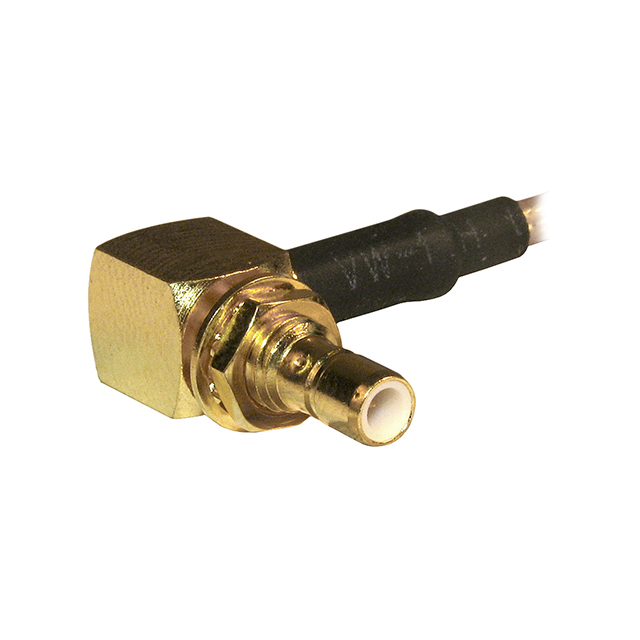

SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Solder
Images may differ
Unit Price ($ / pc.)
4.02498 $
*
Available: 544 pcs.
Next delivery: 10374 pcs.
Available in 4 Weeks
Manufacturer Leadtime: 14 Weeks **
Quantity
Price per unit*
100 pcs.
3.823731 $
500 pcs.
3.622482 $
1000 pcs.
3.421233 $
3000 pcs.
3.219984 $
10000 pcs.
3.018735 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 142233 is a common industry Coaxial Connector (RF) Assemblies housed in a RoHS compliant Standar package by Amphenol RF made. The 142233 is using SPQ 100 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol RF |
| Series | - |
| Package | Bag |
| Product Status | Active |
| Connector Style | SMB |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Fastening Type | Snap-On |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Features | - |
| Housing Color | Gold |
| Ingress Protection | - |
| Center Contact Material | Brass |
| Includes | 6 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut |
| Body Material | Brass |
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Voltage Rating | 335 V |
| Mating Cycles | 500 |
| Insertion Loss | 0.6dB |
| Base Product Number | 1422 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 100 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
