MICRO-D | ITT Cannon, LLC

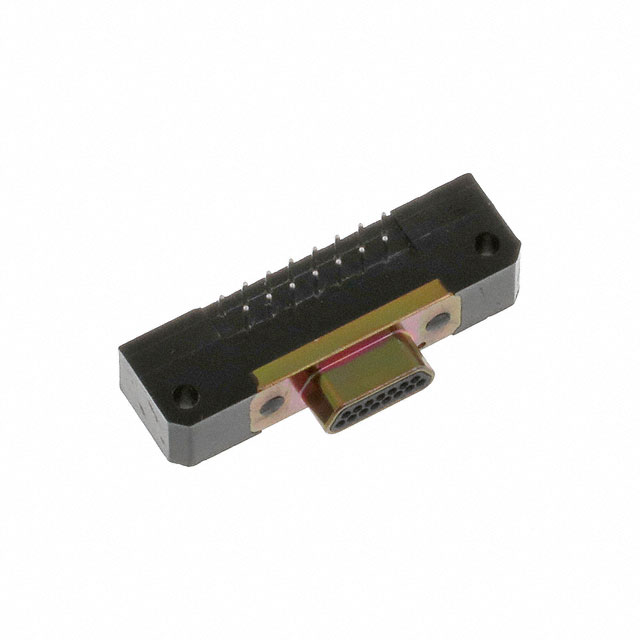

15 Position D-Type, Micro-D Plug, Male Pins Connector
Images may differ
Unit Price ($ / pc.)
78.3144 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 27 Weeks **
Quantity
Price per unit*
100 pcs.
74.39868 $
500 pcs.
70.48296 $
1000 pcs.
66.56724 $
3000 pcs.
62.65152 $
10000 pcs.
58.7358 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The MDM-15PBR is a common industry D-Sub Connector Assemblies housed in a RoHS compliant Standar package by ITT Cannon, LLC made. The MDM-15PBR is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | ITT Cannon, LLC |
| Series | 83513-Style Micro D Metal Shell (MDM) |
| Package | Bag |
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Shell Material, Finish | Aluminum, Yellow Chromate Plated Cadmium |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Shielded |
| Voltage Rating | - |
| Color | - |
| Contact Form | - |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
