DSUB CONN,R/ANGLE, PLUG, ZINC | Amphenol Interconnect India

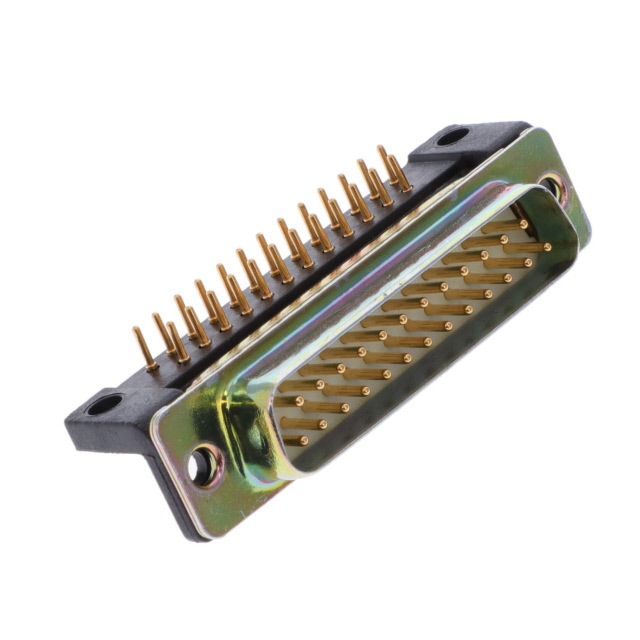

25 Position D-Sub Plug, Male Pins Connector
Images may differ
Unit Price ($ / pc.)
15.144585 $
*
Available: 166 pcs.
Next delivery: 2436 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 24 Weeks **
Quantity
Price per unit*
100 pcs.
14.387356 $
500 pcs.
13.630127 $
1000 pcs.
12.872897 $
3000 pcs.
12.115668 $
10000 pcs.
11.358439 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The M24308/24-27Z is a common industry D-Sub Connector Assemblies housed in a RoHS compliant Standar package by Amphenol Interconnect India made. The M24308/24-27Z is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol Interconnect India |
| Series | Military, MIL-C-24308, M24308 |
| Package | Tray |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | 0.283" (7.20mm) |
| Features | Mounting Brackets |
| Voltage Rating | - |
| Color | Natural |
| Contact Form | Machined |
| Dielectric Material | Polyester, Glass Filled |
| Wire Gauge | 20-26 AWG |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | M24308/24 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
