CONN D-SUB PLUG 4X2POS R/A PASTE | Amphenol ICC (FCI)

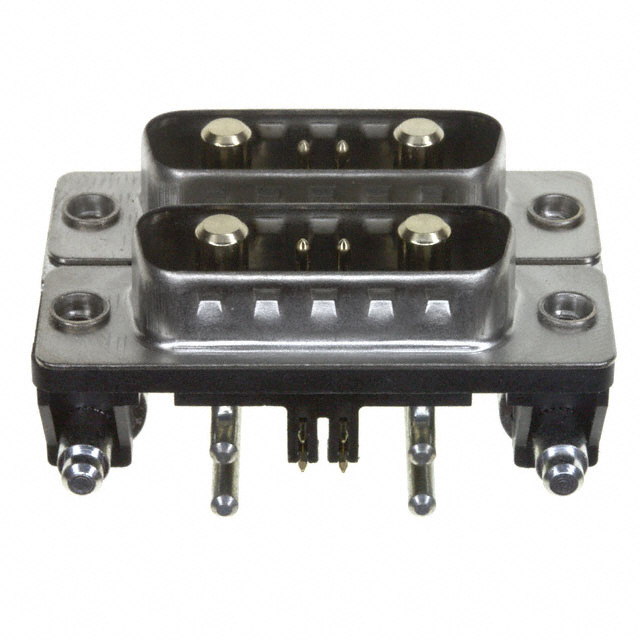

4 (2 + 2 Power) x 2 Position D-Sub, Combo - Stacked Plug, Male Pins Connector

default L
Images may differ

MPN: 10070158-00219XLF

ManufacturerAmphenol ICC (FCI)
Innovo Part NO.10070158-00219XLF_1859886
SeriesMicroTCA
Package / CaseStandar
SPQ.48
Moisture Sensitivity LevelMSL 1
CertificateCE, CCC, ROHS
Product StatusAvailable
CategoriesConnectors, Interconnects >> D-Sub, D-Shaped Connectors >> D-Sub Connector Assemblies
Technical specifications Download Datasheet
Unit Price ($ / pc.)
17.226405 $ *
Available: 235 pcs.
Next delivery: 3885 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 10 Weeks **
Quantity
Price per unit*
100 pcs.
16.365085 $
500 pcs.
15.503765 $
1000 pcs.
14.642444 $
3000 pcs.
13.781124 $
10000 pcs.
12.919804 $
*incl. VAT plus shipping costs
**Subject to prior sale
Add to BOM list Print to PDF
Description
Technical specifications
Download
Logistics
Compliance
Description

The 10070158-00219XLF is a common industry D-Sub Connector Assemblies housed in a RoHS compliant Standar package by Amphenol ICC (FCI) made. The 10070158-00219XLF is using SPQ 48 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com

Technical specifications
MfrAmphenol ICC (FCI)
SeriesMicroTCA
PackageBox
Product StatusActive
Connector StyleD-Sub, Combo - Stacked
Connector TypePlug, Male Pins
Number of Positions4 (2 + 2 Power) x 2
Number of Rows1,1
Mounting TypeBoard Cutout, Through Hole, Right Angle
Shell Size, Connector Layout2 (DA, A) - 4W2; 2 (DA, A) - 4W2
Contact TypeSignal and Power
Flange FeatureHousing/Shell (4-40)
TerminationSolder Paste
Shell Material, FinishSteel, Nickel Plated
Contact FinishGold
Contact Finish Thickness-
Ingress Protection-
Material Flammability Rating-
Current Rating (Amps)0.375A, 24A
Backset Spacing0.201" (5.10mm)
FeaturesBoard Guide, Grounding Indents, Mounting Brackets
Voltage Rating48V
Color-
Contact Form-
Dielectric MaterialThermoplastic
Wire Gauge-
Contact MaterialCopper Alloy
Operating Temperature-55°C ~ 125°C
Base Product Number10070158
Logistics
Country of originHK
Customs tariff number-
Original PackagingReel with 48 pieces
Compliance
RoHS conformYes
HTSUS8504.40.9580
SVHC freeYes
