CONN D-SUB PLUG 9POS R/A SLDR | Amphenol CONEC

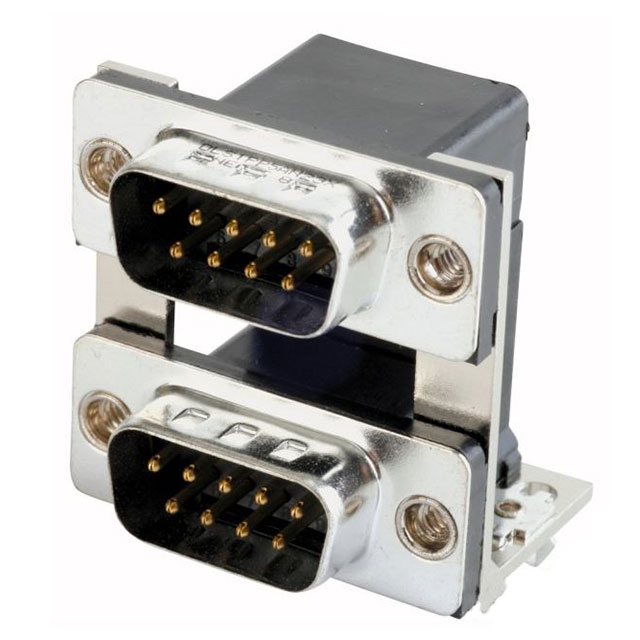

9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
Images may differ
Unit Price ($ / pc.)
$
*
Available: 433 pcs.
Next delivery: 8043 pcs.
Available in 3 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The DLS1PP5AN23X is a common industry D-Sub Connector Assemblies housed in a RoHS compliant Standar package by Amphenol CONEC made. The DLS1PP5AN23X is using SPQ 45 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Amphenol CONEC |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9, 9 |
| Number of Rows | 2, 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00μin (0.203μm) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | - |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Voltage Rating | 125V |
| Color | Black |
| Contact Form | Stamped |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Wire Gauge | - |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | DLS1PP5 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 45 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
