CONN D-SUB RCPT 15POS R/A SLDR | ITT Cannon, LLC

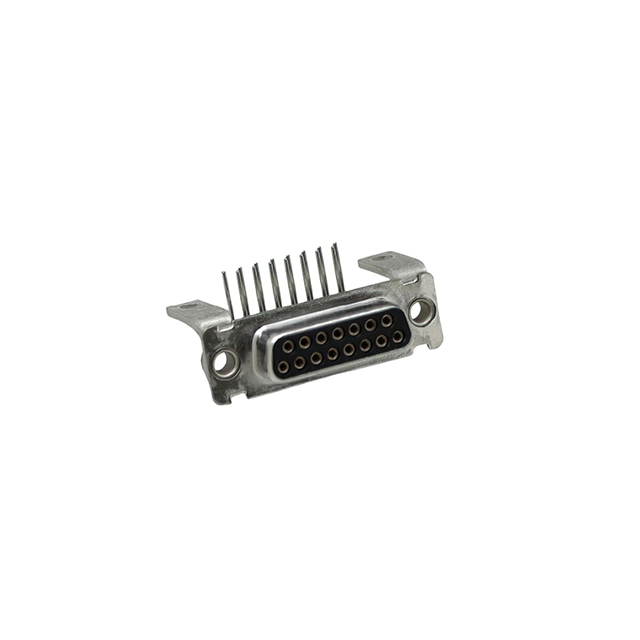

15 Position D-Sub Receptacle, Female Sockets Connector
Images may differ
Unit Price ($ / pc.)
6.503395 $
*
Available: 1014 pcs.
Next delivery: 20244 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
6.178225 $
500 pcs.
5.853056 $
1000 pcs.
5.527886 $
3000 pcs.
5.202716 $
10000 pcs.
4.877546 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The DA-15S-1AFN-A191-A197 is a common industry D-Sub Connector Assemblies housed in a RoHS compliant Standar package by ITT Cannon, LLC made. The DA-15S-1AFN-A191-A197 is using SPQ 70 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | ITT Cannon, LLC |
| Series | Original D |
| Package | Bulk |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0μin (0.76μm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | - |
| Backset Spacing | - |
| Features | Mounting Brackets |
| Voltage Rating | - |
| Color | Black |
| Contact Form | Machined |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Wire Gauge | 20-28 AWG |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 70 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
