IC REG CTRLR BUCK PSI 24UQFN | Diodes Incorporated
Buck Regulator Positive Output Step-Down PSI DC-DC Controller IC U-QFN4040-24

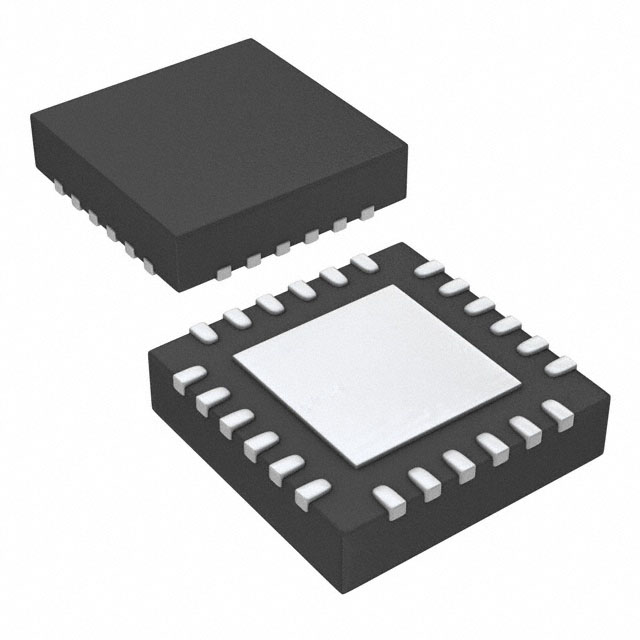

Images may differ
Unit Price ($ / pc.)
$
*
Available: 822 pcs.
Next delivery: 16212 pcs.
Available in 7 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The AP3598AFNTR-G1 is a common industry DC DC Switching Controllers housed in a RoHS compliant 24-VFQFN Exposed Pad package by Diodes Incorporated made. The AP3598AFNTR-G1 is using SPQ 5000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 13.2V |
| Frequency - Switching | 200kHz ~ 500kHz |
| Duty Cycle (Max) | 40% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | PSI |
| Control Features | Enable, Frequency Control, Phase Control, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | U-QFN4040-24 |
| Base Product Number | AP3598 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
