IC REG OVP WITH PTVS WL-CSP-12 | Richtek USA Inc.

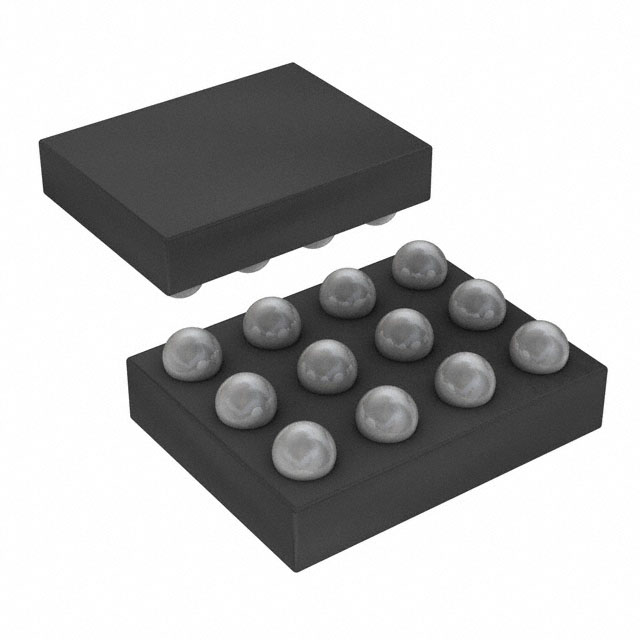

Power Switch/Driver 1:1 12-WLCSP (1.92x1.27)
Images may differ
Unit Price ($ / pc.)
0.19392 $
*
Available: 967 pcs.
Next delivery: 19257 pcs.
Available in 9 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
0.184224 $
500 pcs.
0.174528 $
1000 pcs.
0.164832 $
3000 pcs.
0.155136 $
10000 pcs.
0.14544 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The RT9746HWSC is a common industry Power Distribution Switches, Load Drivers housed in a RoHS compliant 12-UFBGA, WLCSP package by Richtek USA Inc. made. The RT9746HWSC is using SPQ 3000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Richtek USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | On/Off |
| Voltage - Load | 3V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | - |
| Rds On (Typ) | 35mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Over Voltage |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-WLCSP (1.92x1.27) |
| Package / Case | 12-UFBGA, WLCSP |
| Base Product Number | RT9746 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 3000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
