IC REG BUCK PROG 1V 3A 20TQFN | Analog Devices Inc./Maxim Integrated
Buck Switching Regulator IC Positive Programmable (Fixed) 1V (3.3V) 1 Output 3A 20-WQFN Exposed Pad

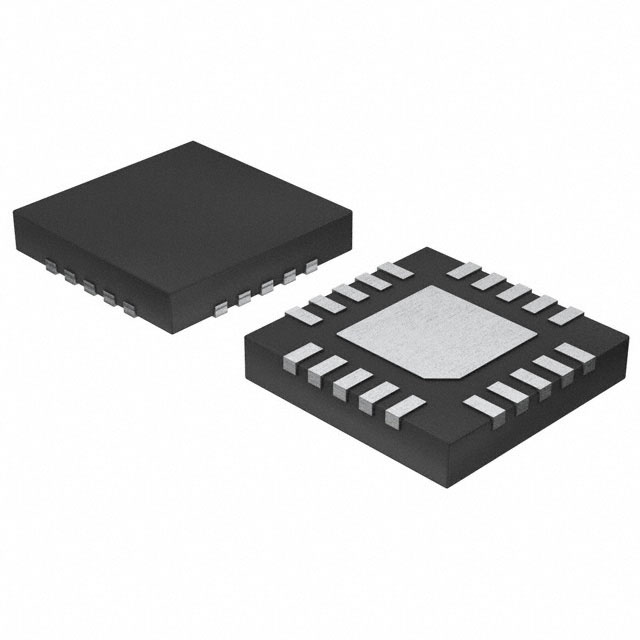

Images may differ
Unit Price ($ / pc.)
$
*
Available: 959 pcs.
Next delivery: 19089 pcs.
Available in 9 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The MAX20003CATPB/VY+ is a common industry Voltage Regulators - DC DC Switching Regulators housed in a RoHS compliant 20-WQFN Exposed Pad package by Analog Devices Inc./Maxim Integrated made. The MAX20003CATPB/VY+ is using SPQ 60 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tray |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V (3.3V) |
| Voltage - Output (Max) | 10V |
| Current - Output | 3A |
| Frequency - Switching | 220kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (5x5) |
| Base Product Number | MAX20003 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 60 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
