IC MOTOR CONTROLLER PAR 30SSOP | Toshiba Semiconductor and Storage

Motor Driver Bi-CMOS Parallel 30-SSOP

default L

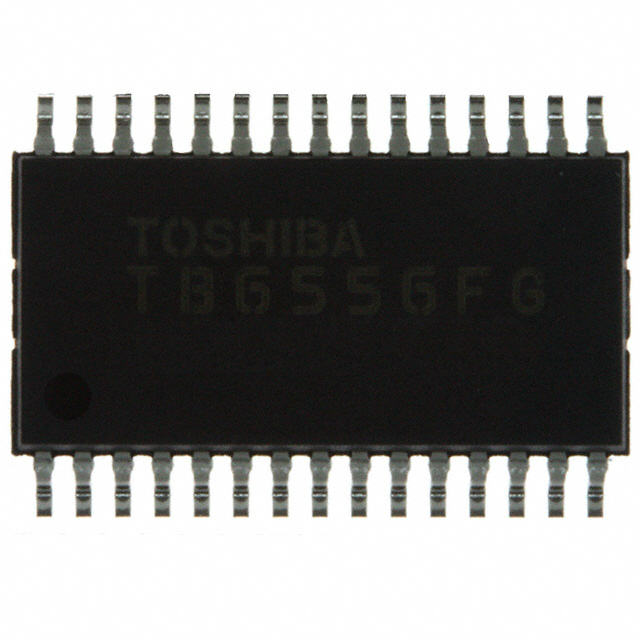

Images may differ

MPN: TB6556FG,8,EL,DRY

ManufacturerToshiba Semiconductor and Storage
Innovo Part NO.TB6556FG,8,EL,DRY_1730122
Series-
Package / Case30-BSOP (0.295", 7.50mm Width)
SPQ.1000
Moisture Sensitivity LevelMSL 1
CertificateCE, CCC, ROHS
Product StatusAvailable
CategoriesIntegrated Circuits (ICs) >> Power Management (PMIC) >> Motor Drivers, Controllers
Technical specifications Download Datasheet
Unit Price ($ / pc.)
$ *
Available: 223 pcs.
Next delivery: 3633 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus shipping costs
**Subject to prior sale
Add to BOM list Print to PDF
Description
Technical specifications
Download
Logistics
Compliance
Description

The TB6556FG,8,EL,DRY is a common industry Motor Drivers, Controllers housed in a RoHS compliant 30-BSOP (0.295", 7.50mm Width) package by Toshiba Semiconductor and Storage made. The TB6556FG,8,EL,DRY is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com

Technical specifications
MfrToshiba Semiconductor and Storage
Series-
Package","values":[{}],"isFilterable":true}
Product StatusObsolete
Motor Type - Stepper-
Motor Type - AC, DCBrushless DC (BLDC)
FunctionController - Commutation, Direction Management
Output ConfigurationHalf Bridge (3)
InterfaceParallel
TechnologyBi-CMOS
Step Resolution-
ApplicationsFan Controller
Current - Output-
Voltage - Supply6V ~ 10V
Voltage - Load-
Operating Temperature-30°C ~ 115°C (TA)
Mounting TypeSurface Mount
Package / Case30-BSOP (0.295", 7.50mm Width)
Supplier Device Package30-SSOP
Base Product NumberTB6556
Logistics
Country of originHK
Customs tariff number-
Original PackagingReel with 1000 pieces
Compliance
RoHS conformYes
HTSUS8504.40.9580
SVHC freeYes
