TPS54JA20 D-CAP3 DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

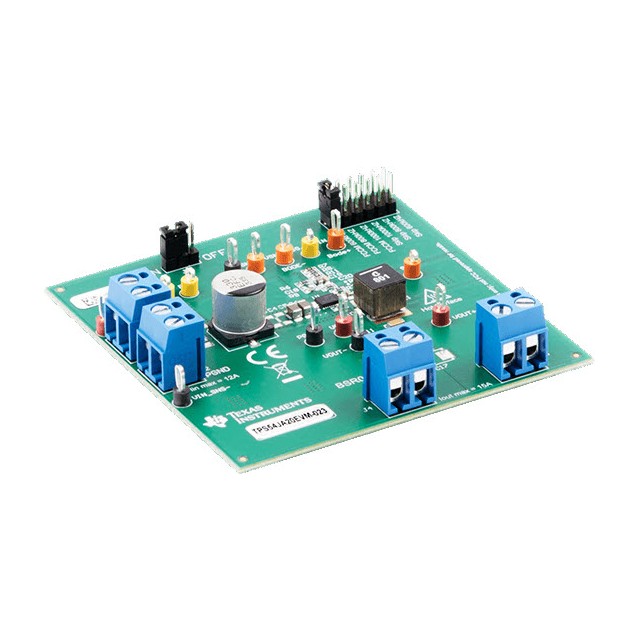

Images may differ
Unit Price ($ / pc.)
30.625 $
*
Available: 173 pcs.
Next delivery: 2583 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
29.09375 $
500 pcs.
27.5625 $
1000 pcs.
26.03125 $
3000 pcs.
24.5 $
10000 pcs.
22.96875 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The TPS54JA20EVM-023 is a common industry DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards housed in a RoHS compliant Standar package by Texas Instruments made. The TPS54JA20EVM-023 is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Texas Instruments |
| Series | D-CAP3 |
| Package | Box |
| Product Status | Active |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
| Voltage - Output | 2.5V |
| Current - Output | 12A |
| Voltage - Input | 4V ~ 16V |
| Regulator Topology | Buck |
| Frequency - Switching | 800kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TPS54JA20 |
| Base Product Number | TPS54 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
