EVAL BOARD FOR LTC3765 LTC3766 | Analog Devices Inc.

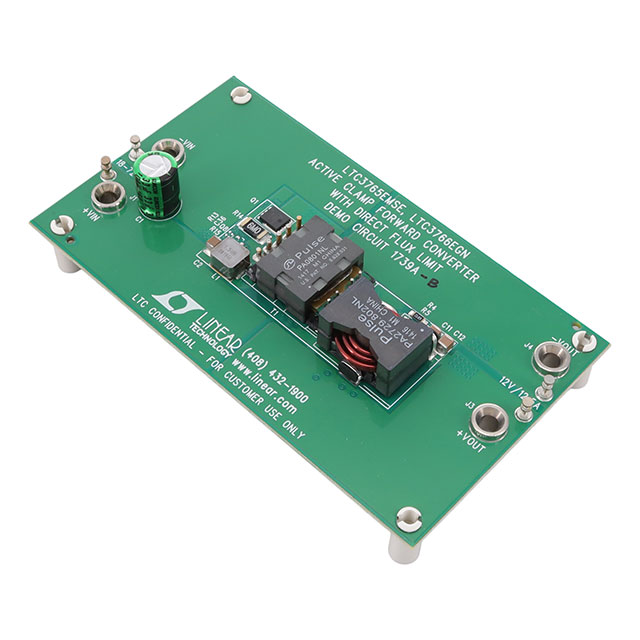

LTC3765, LTC3766 Direct Flux Limit, PolyPhase DC/DC, Step Down 1, Isolated Outputs Evaluation Board
Images may differ
Unit Price ($ / pc.)
152.54 $
*
Available: 536 pcs.
Next delivery: 10206 pcs.
Available in 4 Weeks
Manufacturer Leadtime: 8 Weeks **
Quantity
Price per unit*
100 pcs.
144.913 $
500 pcs.
137.286 $
1000 pcs.
129.659 $
3000 pcs.
122.032 $
10000 pcs.
114.405 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The DC1739A-B is a common industry DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards housed in a RoHS compliant Standar package by Analog Devices Inc. made. The DC1739A-B is using SPQ 1 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Analog Devices Inc. |
| Series | Direct Flux Limit, PolyPhase |
| Package | Box |
| Product Status | Active |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Isolated |
| Voltage - Output | 12V |
| Current - Output | 12.5A |
| Voltage - Input | 18V ~ 72V |
| Regulator Topology | Forward Converter |
| Frequency - Switching | 240Hz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LTC3765, LTC3766 |
| Base Product Number | DC1739 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
