CMC 200UH 36A 4LN TH | Schaffner EMC Inc.
200 μH @ 400 Hz 4 Line Common Mode Choke Through Hole 36A (Typ) DCR 2.3mOhm (Typ)

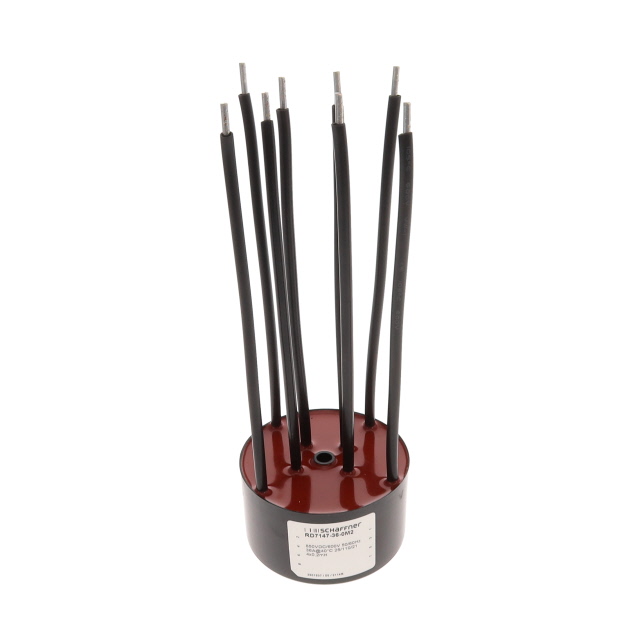

Images may differ
Unit Price ($ / pc.)
15.835 $
*
Available: 249 pcs.
Next delivery: 4179 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
15.04325 $
500 pcs.
14.2515 $
1000 pcs.
13.45975 $
3000 pcs.
12.668 $
10000 pcs.
11.87625 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The RD7147-36-0M2 is a common industry Common Mode Chokes housed in a RoHS compliant Horizontal, 8 PC Pin package by Schaffner EMC Inc. made. The RD7147-36-0M2 is using SPQ 50 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Schaffner EMC Inc. |
| Series | RD |
| Package | Tray |
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Inductance @ Frequency | 200 μH @ 400 Hz |
| Current Rating (Max) | 36A (Typ) |
| DC Resistance (DCR) (Max) | 2.3mOhm (Typ) |
| Voltage Rating - DC | 850V |
| Voltage Rating - AC | 600V |
| Operating Temperature | -25°C ~ 110°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.756" L x 2.756" W (70.00mm x 70.00mm) |
| Height (Max) | 1.594" (40.50mm) |
| Package / Case | Horizontal, 8 PC Pin |
| Base Product Number | RD7147 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 50 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
