CMC 8UH 4A 2LN TH | Schaffner EMC Inc.
8 μH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A (Typ) DCR 20mOhm (Typ)

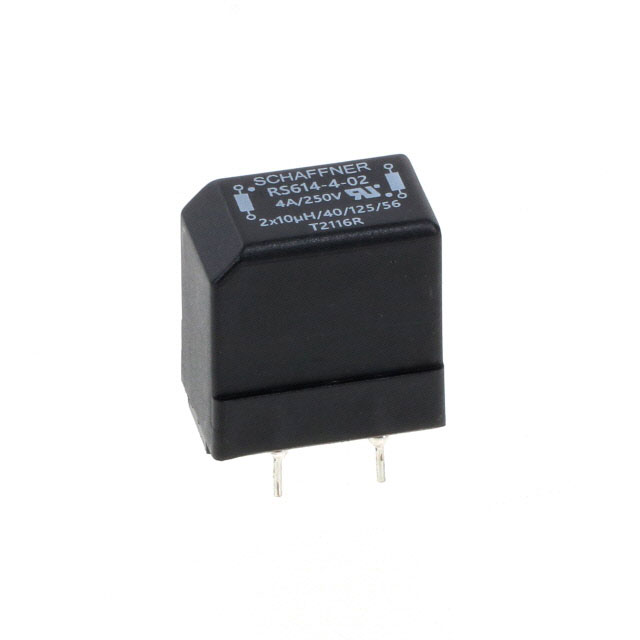

Images may differ
Unit Price ($ / pc.)
1.09725 $
*
Available: 249 pcs.
Next delivery: 4179 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 16 Weeks **
Quantity
Price per unit*
100 pcs.
1.042388 $
500 pcs.
0.987525 $
1000 pcs.
0.932663 $
3000 pcs.
0.8778 $
10000 pcs.
0.822938 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The RS614-4-02 is a common industry Common Mode Chokes housed in a RoHS compliant Vertical, 4 PC Pin package by Schaffner EMC Inc. made. The RS614-4-02 is using SPQ 500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Schaffner EMC Inc. |
| Series | RS |
| Package | Tube |
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 8 μH @ 1 kHz |
| Current Rating (Max) | 4A (Typ) |
| DC Resistance (DCR) (Max) | 20mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.906" L x 0.610" W (23.00mm x 15.50mm) |
| Height (Max) | 0.984" (25.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | RS614 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
