CMC 100MA 2LN 90 OHM SMD | Pulse Electronics
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 4.5Ohm

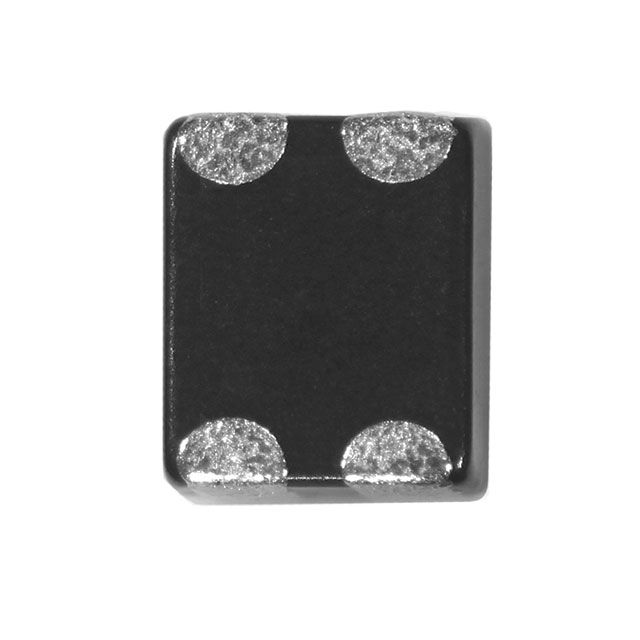

Images may differ
Unit Price ($ / pc.)
$
*
Available: 650 pcs.
Next delivery: 12600 pcs.
Available in 6 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The PE-0403MCMC900ST is a common industry Common Mode Chokes housed in a RoHS compliant 0504 (1210 Metric), 4 Lead package by Pulse Electronics made. The PE-0403MCMC900ST is using SPQ 5000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Pulse Electronics |
| Series | 0403 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 4.5Ohm |
| Voltage Rating - DC | 5V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Height (Max) | 0.026" (0.65mm) |
| Package / Case | 0504 (1210 Metric), 4 Lead |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 5000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
