RF DIR COUPLER 30MHZ-500MHZ 8SMD | Mini-Circuits
RF Directional Coupler Cellular 30MHz ~ 500MHz 7.3 ± 0.4dB 1W 8-SMD, J-Lead

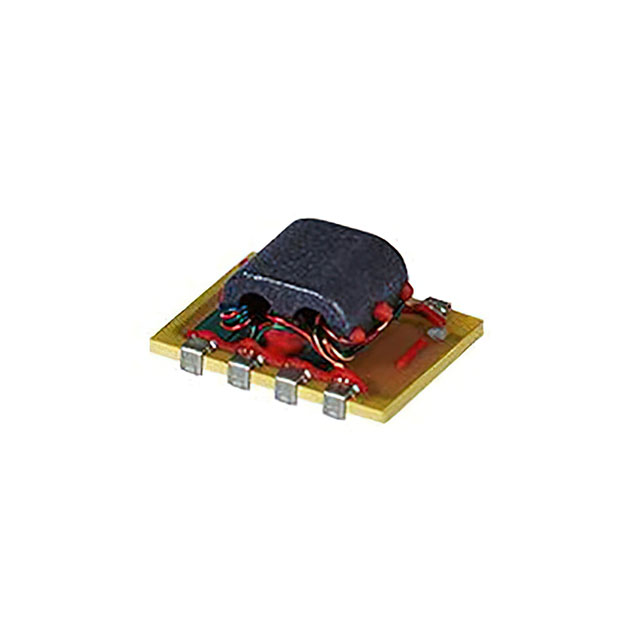

Images may differ
Unit Price ($ / pc.)
9.93125 $
*
Available: 189 pcs.
Next delivery: 2919 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 9 Weeks **
Quantity
Price per unit*
100 pcs.
9.434688 $
500 pcs.
8.938125 $
1000 pcs.
8.441563 $
3000 pcs.
7.945 $
10000 pcs.
7.448438 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The JYDC-7-1HP+ is a common industry RF Directional Coupler housed in a RoHS compliant 8-SMD, J-Lead package by Mini-Circuits made. The JYDC-7-1HP+ is using SPQ 500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Mini-Circuits |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Coupler Type | Standard |
| Frequency | 30MHz ~ 500MHz |
| Coupling Factor | 7.3 ± 0.4dB |
| Applications | Cellular |
| Insertion Loss | - |
| Power - Max | 1W |
| Isolation | - |
| Return Loss | 22.35dB |
| Package / Case | 8-SMD, J-Lead |
| Supplier Device Package | - |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
