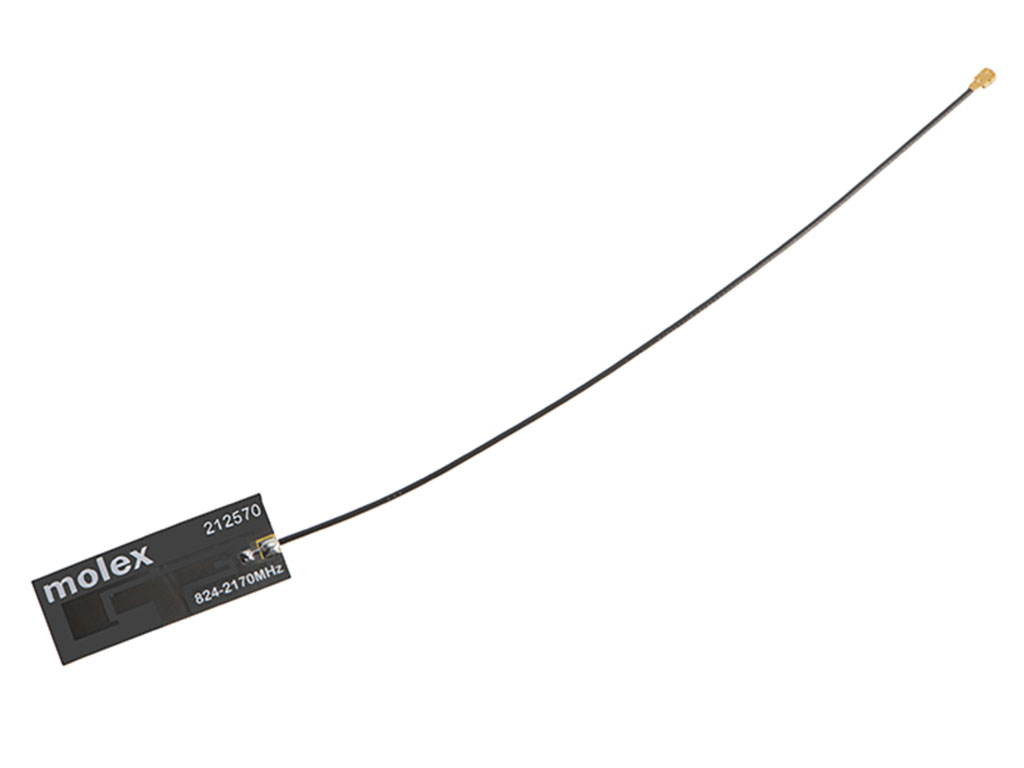

824~2170MHZ FLEXIBLE ANT SIDE-FE | Molex
892MHz, 1.94GHz LTE PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz -0.45dBi, 1.76dBi U.FL (UMCC), IPEX MHF1 Adhesive
Images may differ
Unit Price ($ / pc.)
0.689965 $
*
Available: 154 pcs.
Next delivery: 2184 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 12 Weeks **
Quantity
Price per unit*
100 pcs.
0.655467 $
500 pcs.
0.620969 $
1000 pcs.
0.58647 $
3000 pcs.
0.551972 $
10000 pcs.
0.517474 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 2125700200 is a common industry RF Antennas housed in a RoHS compliant Standar package by Molex made. The 2125700200 is using SPQ 10 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | 212570 |
| Package | Tray |
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 892MHz, 1.94GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 2 |
| VSWR | - |
| Return Loss | -5dB |
| Gain | -0.45dBi, 1.76dBi |
| Features | Cable - 200mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | LTE |
| Base Product Number | 212570 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 10 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
