ANTENNA GPS L1/L2 STACKED | Molex
1.2275GHz, 1.575GHz GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz 2.1dBi, 5.3dBi Solder Adhesive

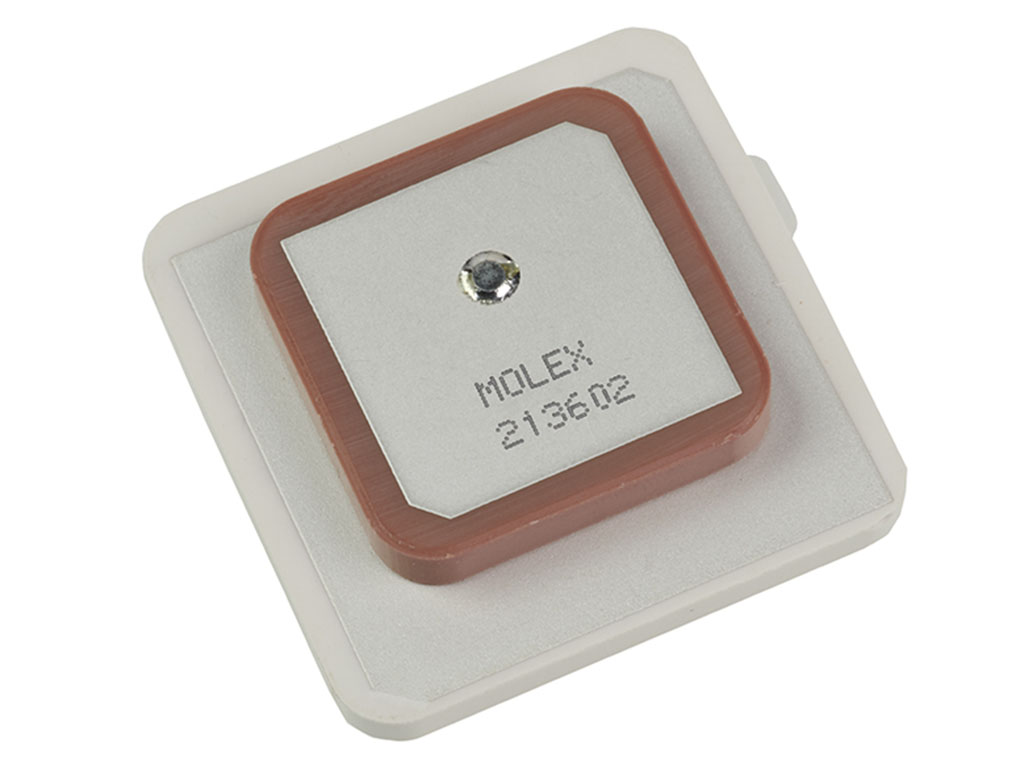

Images may differ
Unit Price ($ / pc.)
4.29023 $
*
Available: 156 pcs.
Next delivery: 2226 pcs.
Available in 1 Weeks
Manufacturer Leadtime: 17 Weeks **
Quantity
Price per unit*
100 pcs.
4.075719 $
500 pcs.
3.861207 $
1000 pcs.
3.646696 $
3000 pcs.
3.432184 $
10000 pcs.
3.217673 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The 2136020001 is a common industry RF Antennas housed in a RoHS compliant Standar package by Molex made. The 2136020001 is using SPQ 25 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Molex |
| Series | 213602 |
| Package | Tray |
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.2275GHz, 1.575GHz |
| Frequency Range | 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 2 |
| VSWR | - |
| Return Loss | -15dB |
| Gain | 2.1dBi, 5.3dBi |
| Features | - |
| Termination | Solder |
| Mounting Type | Adhesive |
| Height (Max) | 0.276" (7.00mm) |
| Applications | GLONASS, GNSS, GPS |
| Base Product Number | 213602 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 25 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
