MICROPROCESSOR CIRCUIT PBGA99 | Freescale Semiconductor
IC RF TxRx + MCU 802.15.4 Zigbee 2.4GHz 145-TFLGA

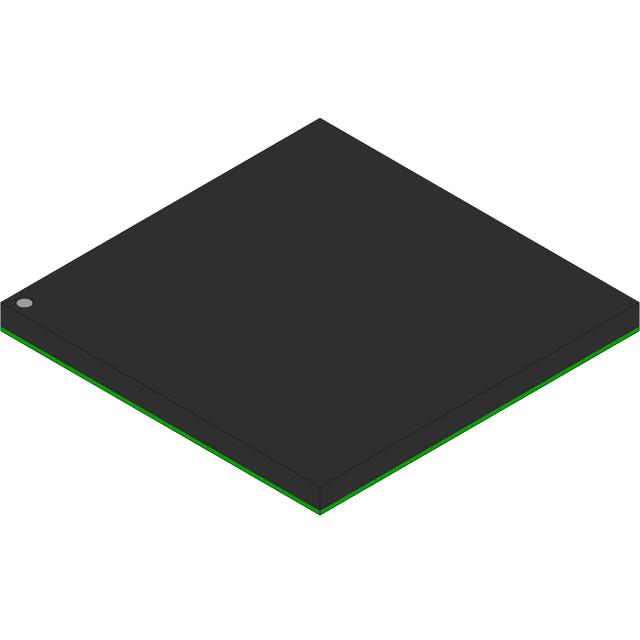

Images may differ
Unit Price ($ / pc.)
4.62 $
*
Available: 176 pcs.
Next delivery: 2646 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
4.389 $
500 pcs.
4.158 $
1000 pcs.
3.927 $
3000 pcs.
3.696 $
10000 pcs.
3.465 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The MC13226V is a common industry RF Transceiver ICs housed in a RoHS compliant 145-TFLGA package by Freescale Semiconductor made. The MC13226V is using SPQ 33 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Freescale Semiconductor |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee |
| Modulation | O-QPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 4dBm |
| Sensitivity | -100dBm |
| Memory Size | 128kB Flash, 80kB ROM, 96kB SRAM |
| Serial Interfaces | I2C, I2S, JTAG, SPI, UART |
| GPIO | 64 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 22mA ~ 24mA |
| Current - Transmitting | 29mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 145-TFLGA |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 33 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
