IC RF TXRX+MCU 802.15.4 56VFQFN | NXP USA Inc.
IC RF TxRx + MCU 802.15.4 Zigbee 2.4GHz 56-VFQFN

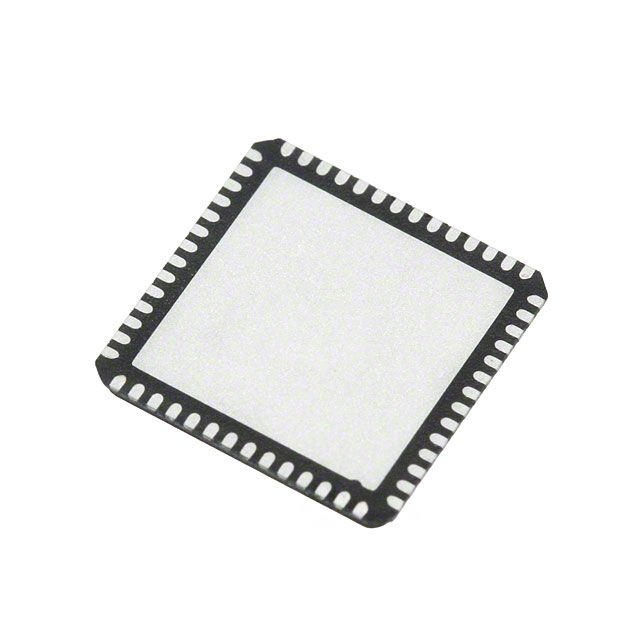

Images may differ
Unit Price ($ / pc.)
$
*
Available: 215 pcs.
Next delivery: 3465 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The JN5139/Z01,515 is a common industry RF Transceiver ICs housed in a RoHS compliant 56-VFQFN package by NXP USA Inc. made. The JN5139/Z01,515 is using SPQ 1000 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | NXP USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 3dBm |
| Sensitivity | -97dBm |
| Memory Size | 192kB ROM, 96kB RAM |
| Serial Interfaces | SPI, UART |
| GPIO | 21 |
| Voltage - Supply | 2.2V ~ 3.6V |
| Current - Receiving | 37mA |
| Current - Transmitting | 38mA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 56-VFQFN |
| Base Product Number | JN513 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1000 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
