OPTOISO 4KV TRANS W/BASE 6DIP | Toshiba Semiconductor and Storage
Optoisolator Transistor with Base Output 4000Vrms 1 Channel 6-DIP

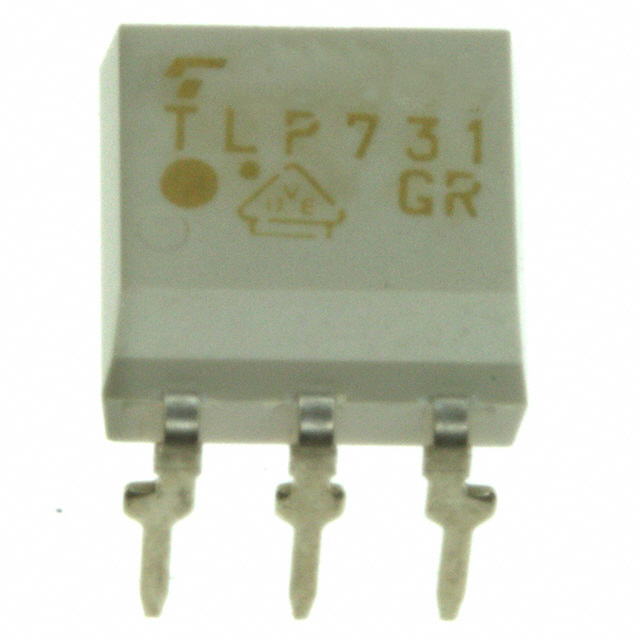

.JPG)
Images may differ
Unit Price ($ / pc.)
$
*
Available: 214 pcs.
Next delivery: 3444 pcs.
Available in 1 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0 $
500 pcs.
0 $
1000 pcs.
0 $
3000 pcs.
0 $
10000 pcs.
0 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The TLP731(D4-GR,F) is a common industry Transistor, Photovoltaic Output Optoisolators housed in a RoHS compliant 6-DIP (0.300", 7.62mm) package by Toshiba Semiconductor and Storage made. The TLP731(D4-GR,F) is using SPQ 50 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | Toshiba Semiconductor and Storage |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3μs, 3μs |
| Rise / Fall Time (Typ) | 2μs, 3μs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Base Product Number | TLP731 |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 50 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
