FERRITE CORE EPX 2.5UH N45 2PCS | EPCOS - TDK Electronics

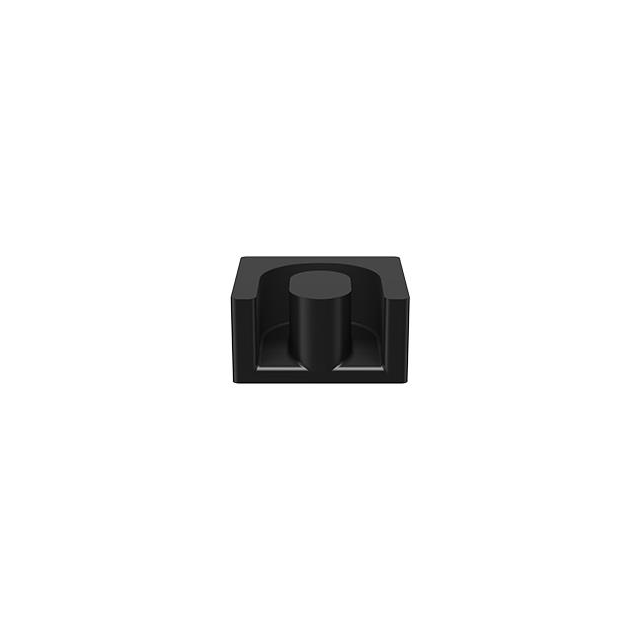

Uncoated N45 Ferrite Core EPX Type 0.370 (9.40mm) Length 0.354 (9.00mm) Width Diameter 0.148 (3.75mm) Height
Images may differ
Unit Price ($ / pc.)
0.189075 $
*
Available: 441 pcs.
Next delivery: 8211 pcs.
Available in 3 Weeks
Manufacturer Leadtime: **
Quantity
Price per unit*
100 pcs.
0.179621 $
500 pcs.
0.170168 $
1000 pcs.
0.160714 $
3000 pcs.
0.15126 $
10000 pcs.
0.141806 $
*incl. VAT plus
shipping costs
**Subject to prior sale
Description
The B65857A0000R045 is a common industry Ferrite Cores housed in a RoHS compliant Standar package by EPCOS - TDK Electronics made. The B65857A0000R045 is using SPQ 1500 pieces and MSL1 packing size. Buy new and original item from Innovo Technology distributor, contact by email: sales@hk-innovo.com
Technical specifications
| Mfr | EPCOS - TDK Electronics |
| Series | B65857A |
| Package | Box |
| Product Status | Not For New Designs |
| Core Type | EPX |
| Supplier Device Package | EPX 7 x 9 |
| Material | N45 |
| Diameter | - |
| Inductance Factor (Al) | 2.5 μH |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (μe) | 1820 |
| Initial Permeability (μi) | 3800 |
| Core Factor (ΣI/A) mm1 | 0.91 |
| Effective Length (le) mm | 15.7 |
| Effective Area (Ae) mm2 | 17.2 |
| Minimum Core Cross Section (Amin) mm2 | 13.9 |
| Effective Magnetic Volume (Ve) mm3 | 270 |
| Finish | Uncoated |
| Height | 0.148" (3.75mm) |
| Length | 0.370" (9.40mm) |
| Width | 0.354" (9.00mm) |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | - |
| Original Packaging | Reel with 1500 pieces |
Compliance
| RoHS conform | Yes |
| HTSUS | 8504.40.9580 |
| SVHC free | Yes |
